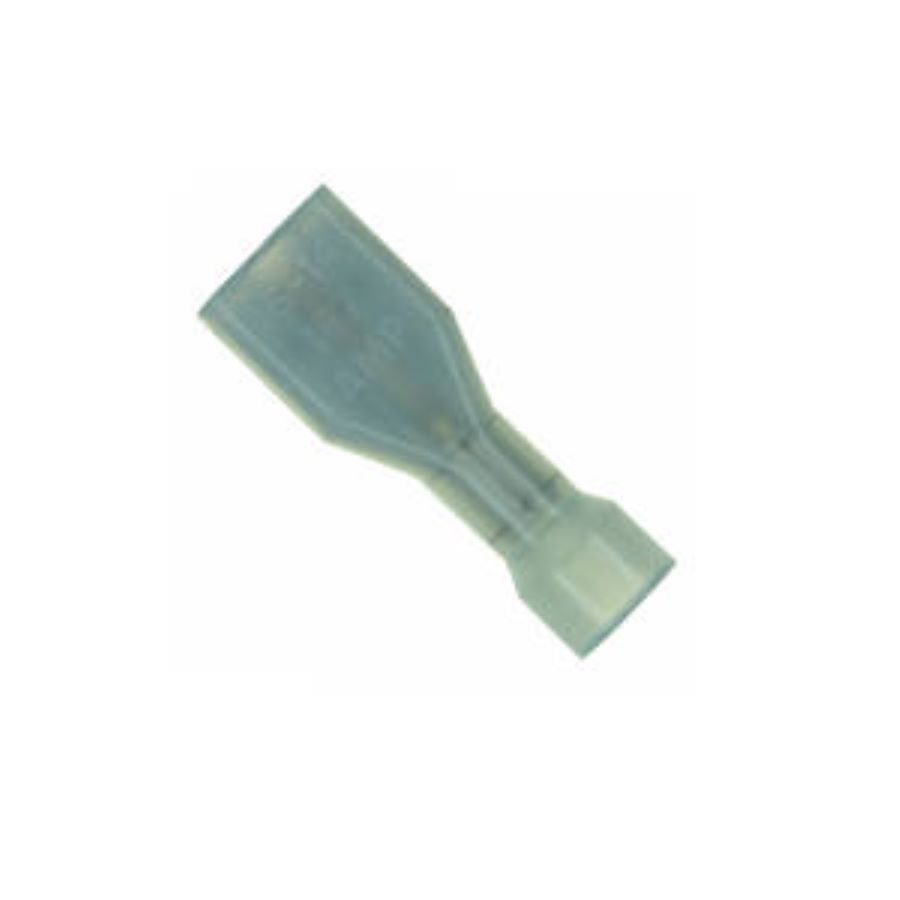

3-520124-2
Manufacturer:
TE Connectivity
Mfr.Part #:
3-520124-2
Datasheet:
Description:
Terminals Free Hanging 14 AWG Female
| Parameter | Value |
|---|---|
| Length | 21.717 mm |
| Termination | Receptacle |
| Max Operating Temperature | 105 °C |
| Material | Brass |
| Packaging | Reel |
| Depth | 8.53 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Tab |
| Flammability Rating | UL94V-2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Blue |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 4.7498 mm |
| Wire/Cable Diameter | 4.064 mm |
| Terminal Material | Brass |
| Wire/Cable Gauge | 14 AWG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 14 AWG |
| Wire Gauge (Min) | 16 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 4.06 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 4.75 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 4.75 mm x 0.81 mm |
Stock: 5438
Distributors
pcbx
pcbxUnit Price$0.67390
Ext.Price$0.67390
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.67390 | $0.67390 |
| 10 | $0.33695 | $3.36950 |
| 50 | $0.25919 | $12.95950 |
| 100 | $0.19938 | $19.93800 |
| 500 | $0.15337 | $76.68500 |
| 1000 | $0.11798 | $117.98000 |
| 3000 | $0.10939 | $328.17000 |
| 5000 | $0.10143 | $507.15000 |
| 10000 | $0.09405 | $940.50000 |
| 30000 | $0.08720 | $2616.00000 |
